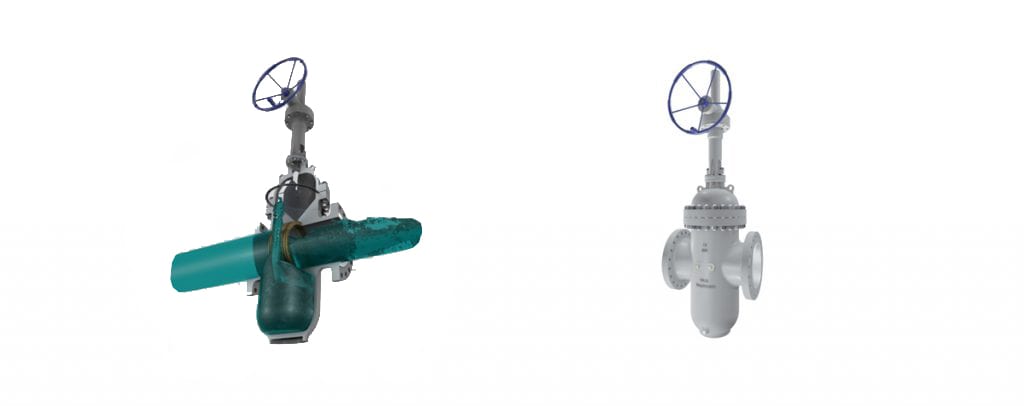

Slab gate valves
| Design Standards: | API 6D |
| Materail Grades: | WCA, WCB, WCC LCB, LCC, WC1, WC5, WC6, WC9, LC2, LC3 C5, C12, C12A, CF8, CF8M, CF8C, CF10, CG8M, CE8MN, CD6MN, CD3MN, Monel M30C, Monel M35-1, Monel CZ100, Inconel CY40 (Inconel 600), CW2M (Hastelloy C4), N12MV (Hastelloy B), CW12MW (Former Hastelloy C-276), CW6M (New Hastelloy C-276), CU5MCuC (Incoloy 825), N7M (Hastelloy B2), CW6MC (Inconel 625), |
| Sizes: | 2” to 48″ |
| Pressure Class | 150# to 1500# |
| Ends: | RF, RTJ |
| Special features | Full thru-conduit port to permit pass scrapers, pigs and wipers, Top entry for maintenance inline, Double block and bleed.Secondary seal seat grease injectors, Meets Fire Test in accordance API-6FA |
